Passive Series
Home > Product > Passive Series

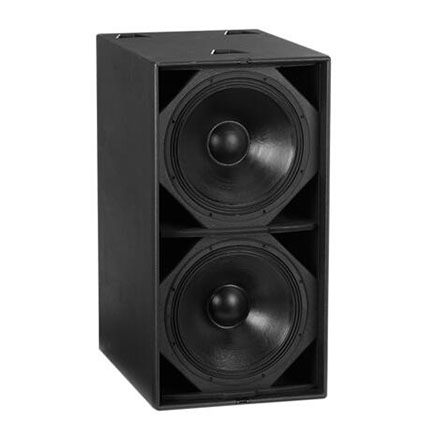

  • S-218

    1.RMS Power Handling: 1550W
    2.Peak Power Handling: 3500W
    3.Woofer(LF): 2x18”
    4.Frequency Response: (±3 dB): 35 Hz - 150 kHz
    5.Sensitivity(1W @ 1M): 105dB
    6.Maximum SPL:136dB Peak @ 1M
    7.Nominal Impedance:4 ohm
    8.Input Connectors: 2 x Neutrik Speakon(4 Pins)

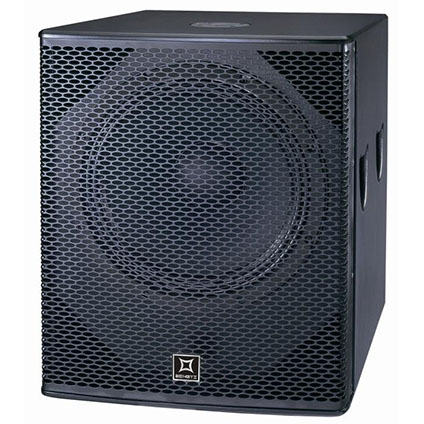

  • S-18

    1.RMS Power Handling: 750W
    2.Peak Power Handling: 1600W
    3.Woofer(LF): 1x18”
    4.Frequency Response (±3 dB): 45 Hz - 120 kHz
    5.Sensitivity(1W @ 1M): 102dB
    6.Maximum SPL:130dB Peak @ 1M

  • S-15

    1.RMS Power Handling: 550W
    2.Peak Power Handling: 1200W
    3.Woofer(LF): 1x15”
    4.Frequency Response: (±3 dB): 45 Hz - 120 kHz
    5.Sensitivity(1W @ 1M): 101dB
    6.Maximum SPL:129dB Peak @ 1M

  • S-12

    1.RMS Power Handling: 300W
    2.Peak Power Handling: 900W
    3.Woofer(LF): 1x12”
    4.Frequency Response: (±3 dB): 52 Hz - 150 kHz
    5.Sensitivity(1W @ 1M): 100dB
    6.Maximum SPL:126dB Peak @ 1M
