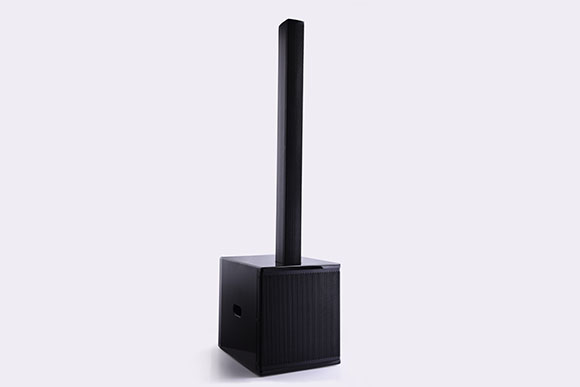

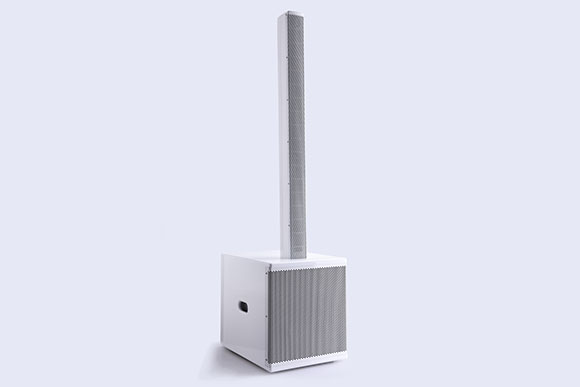

D2 Line Array Column system

S-12B Subwoofer Specification

RMS Power Handling

250W

Peak Power Handling

600W

LF Unit

1 x 12”

Frequency Response (±3 dB)

35Hz-250Hz

Sensitivity(1W @ 1M)

93dB

Maximum SPL

99dB

Nominal Impedance

8Ω

Input Connectors

2 x Neutrik Speakon

Cabinet material

15mm High Intensity Plywood

Finish

Textured black/ white paint

Dimensions (W x H x D)

383mm(15”) x 430mm(17”) x 510mm(20”)

Package Dimensions (single unit per box)

570mm(22.4”) x510mm(20”) x 450mm(17.7”)

Net Weigh

26kg(57.3Lbs)

Gross Weight

29kg(64Lbs)

Built-in DSP processor,amplifier RMS Power:2x200W

Come with USB slot, 6 preinstalled and customizable programs.

D2 Line Array Column system

L-TWO COLUMN Specification

RMS Power Handling

180W

Peak Power Handling

380W

Unit

Full Range:16 x 2.25”+HF:1x 2”

Frequency Response (±3 dB)

80Hz-20KHz

Sensitivity(1W @ 1M)

93dB

Maximum SPL

99dB

Nominal Impedance

8Ω

Dispersion pattern

110°H×10°V

Cabinet material

12mm High Intensity Plywood

Finish

Textured black/ white paint

Dimensions (W x H x D)

82mm(3.2”) x 1050mm(41.3”) x 105mm(4.1”)

Package Dimensions (Unit per box)

1235mm(248.6”) x 195mm(7.7”) x 170mm(6.7”)

Net Weigh

2.6kg (5.7Ibs)

Gross Weight (Unit per box)

5.6kg 12.3Ibs)
