● 48Bit Sampling Frequency, 24-bit A/D and D/A converter, 32-bit DSP processor.
● 3 Group of MIC Input with indendent Gian adjustment for each.

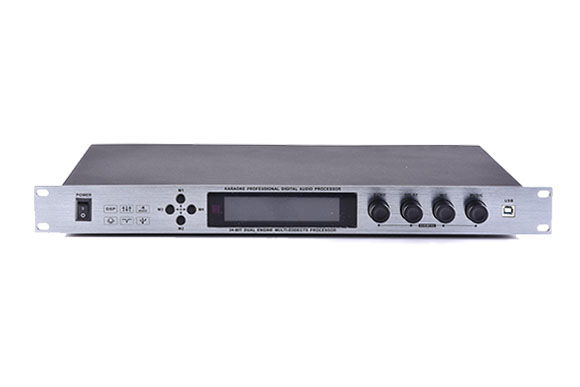

● 4 Mode Effect,each mode’s Echo,Delay,MIC and Music parameter show on the LED display.
● 4 Master Knob Echo,Delay,MIC and Music for setting parameter.
● With USB connector ability to connect with PC.
● Music and Microphone Input channel comes with 10-Bands Parametric EQ.
● Main channel,Center and Sub Output channel comes with 7-Bands Parameteric EQ.
● Adopt Latest DSP digital chip,ECHO effect has 7-Bands EQ to adjustment.

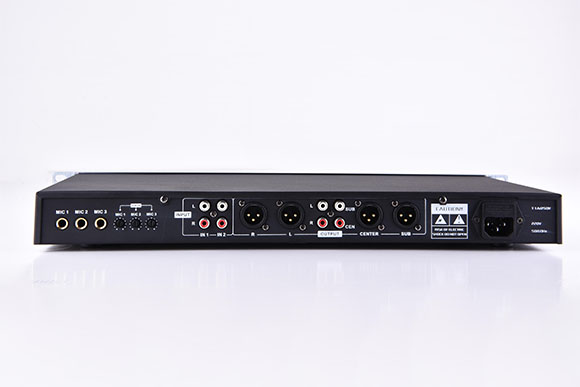

● Audio Input:2 Group(RCA Jacks)
● Audio Output: 4 XLR+2 Group(RCA Jacks)
|
Specification
|
|
SNR
|
MIC
|
>102dB
|
|
MUSIC
|
>100dB
|
|
THD+N
|
MIC
|
<0.1%
|
|
MUSIC
|
<0.1%
|
|
Max Input Level
|
MIC
|
90mVrms
|
|
MUSIC
|
4.0Vrms
|
|
Max Output Level
|
MIC
|
5.1Vrms
|
|
MUSIC
|
5.1Vrms
|
|
Noise
|
MIC
|
<40μVrms
|
|
MUSIC
|
<40μVrms
|
|
Dynamic Range
|
MIC
|
>100dB
|
|
MUSIC
|
>100dB
|
|
Input Parameter
|
MIC
|
3 Groupt Mic Input
|
|
MUSIC
|
2 Group RCA Jack
|
|
Output Parameter
|
Balance Output
|
4 XLR, Main channel,Center ,Sub Output channel,REC
|
|
EQ
|
MIC Input
|
2 Group independent customize 15-bands
|
|
Music Input
|
customize 15-bands
|
|
Main Output
|
customize 24-bands
|
|
Center Output
|
Customize 10-bands
|
|
Sub Output
|
customize 7-bands
|
|
Power Consumption
|
5.7W(No signal input)
|
|
Dimensions (W x H x D)
|
385(15.2”) x 50(2”) x 210(8.3”)mm
|
|
Packaging Dimensions (1 piece/pack)
|
618mm (24”) x 550mm (21.7”) x 355mm (14”)
|
|
Net Weight
|
2.8kg(6.2 Ibs)
|
|
Gross Weight (5 piece/pack)
|
21kg(46.3 Ibs)
|
