Description
The TM Series 2U and 2 channel professional amplifiers which have been engineered for reliability can fixed installations or portable applications. Unique modern appearance.Double side superior glass fiber circuit board and adopt high level components. Unique low-noise design, noise is very low when working.
Feature

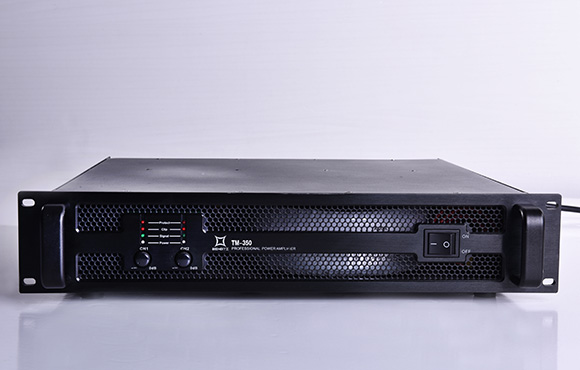

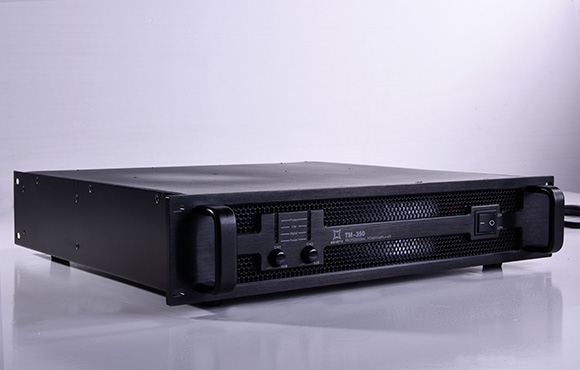

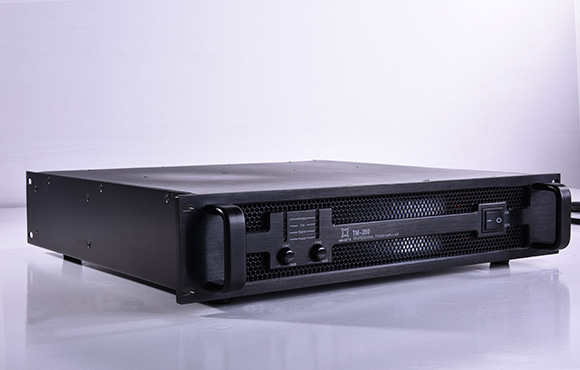

1. 2U chassis design with aluminum front panel.
2. 2 convenient carry handles in front panel.

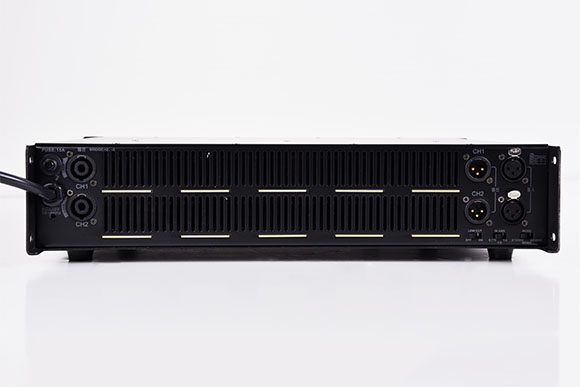

3. Rear panel selection switch for Stereo, Parallel and Bridged modes, including Low-cut filter and Gain switches.
4. Indented channel volume controls.
5. Protect,Chlip, Signal and Power LED indicators for each channel.
6. Operates can adjust 8Ω and 4Ω loads.
7. Special heatsink design front to back air flow for efficient cooling.
8. Variable fan, speed is automatically adjusted by temperature.
9. Over heat,over load,short circuit and DC protection.

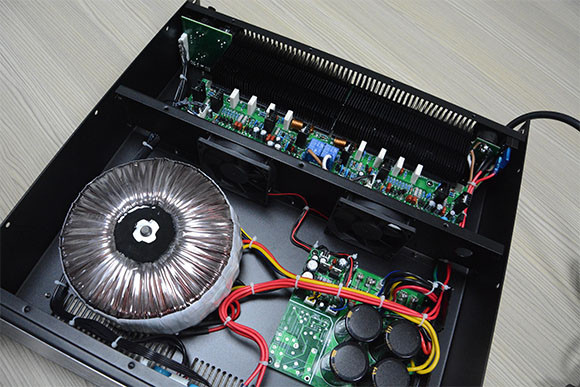

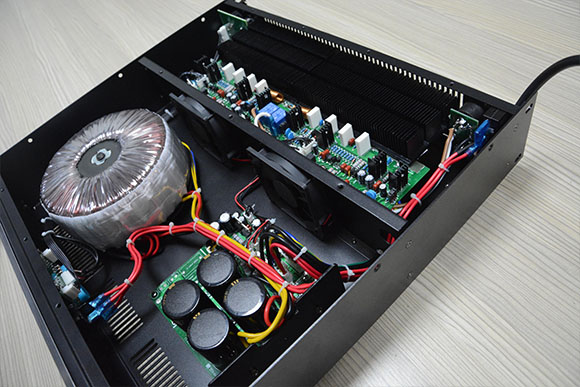

10. With high-quality high-efficiency toroidal transformer, high-capacity electrolytic capacitor for power filter.
|
Specifications:
|
|
Rated Power (Stereo 8Ω)
|
2 x 350W
|
|
Rated Power (Stereo 4Ω)
|
2 x 460W
|
|
Rated Power (Bridge 4Ω)
|
800W
|
|
Frequency Response
|
20Hz-20kHz±0.5%
|
|
Slew Ratio
|
30V/μs
|
|
THD (20Hz-20KHz)
|
<0.05%
|
|
Damping Coefficient
|
>280
|
|
S/N Ratio
|
≥102dB
|
|
Input Sensitivity
|
1Vrms
|
|
Input Impedance
|
20kΩ Balanced, 10kΩ Unbalanced
|
|
Input Connector
|
2 x Combo XLR
|
|
Link Connector
|
2 x XLR male,3 pin
|
|
Output Connectors
|
2 xSpeakon
|
|
Circuit Type
|
CLASS AB
|
|
Power Supply
|
~110V/~220V,
50Hz/60Hz, 1500VA
|
|
Dimensions (W x H x D)
|
480mm (19”) x88mm (3.5”) x 370mm (14.6”)
|
|
Packaging Dimensions (1 piece/pack)
|
585mm (23”) x 142mm (5.6”) x 520mm (20.4”)
|
|
Net Weight (1 piece/pack)
|
15.7kg (34.6Ibs)
|
|
Gross Weight (1 piece/pack)
|
18.6kg (41Ibs)
|
