Description
The A-610is designed for high-end theater design.Outlook design, internal structure, circuit design, expressive and so on after several optimization,.sound analysis and performance are very outstanding, is a HIFI high-power, multi-function, high quality, stability, reliability in one AB professional audio and video power amplifier.
Feature

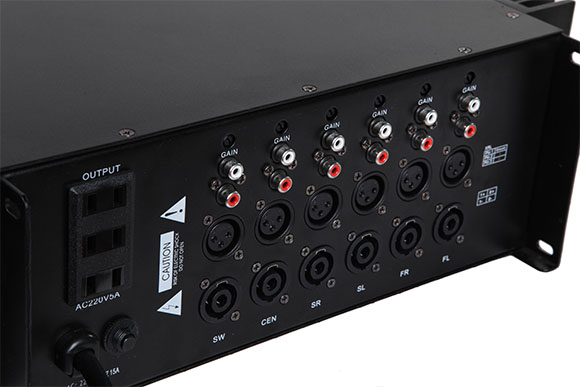

● 6 Group Video Input,two kinds connector
● 6 Group binding post.

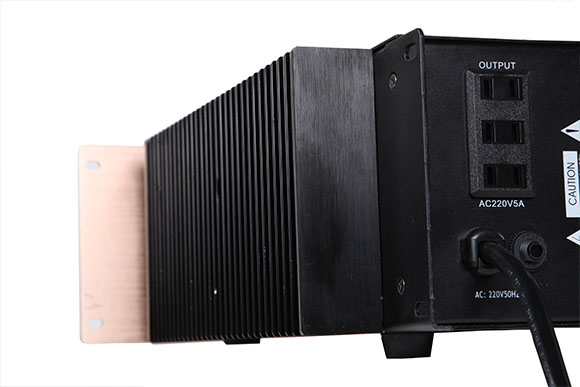

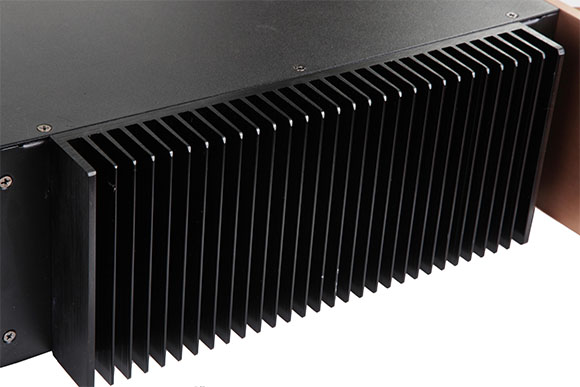

● No fan noise, use of large-scale exposed radiator.
● With perfect DDT compression protection system, dual temperature control overheating protection.
● With soft start switch for transient protection, mute switch protection.Has overheating, DC, short circuit, power overload protection.
|
Specifications:
|
|
Pre-amplifier Rated Power
|
2 x 180W
|
|
Center Rated Power
|
180W
|
|
Surround Rated Power
|
2 x180W
|
|
Sub Rated Power
|
390W
|
|
Frequency Response
|
20Hz-20kHz±0.5%
|
|
Total Harmonic Distortion(20Hz-20KHz)
|
<0.05%
|
|
S/N Ratio
|
92dB
|
|
Input Sensitivity
|
755Mv
|
|
Resolution
|
85dB
|
|
Power Supply
|
~110V/~220V, 50Hz/60Hz, 1500VA
|
|
Dimensions (W x D x H)
|
386mm (15.2”) x132mm (5.2”) x 482mm (19”)
|
|
Packaging Dimensions (1 piece/pack)
|
570mm (22.4”) x 180mm (7”) x 520mm (20.5”)
|
|
Net Weight
|
19.4kg (42.8 Ibs)
|
|
Gross Weight (1 piece/pack)
|
21.5kg (47.4 Ibs)
|
