Description
The MA series is 2-Way Passive Speaker.Compact structure which selectd British Technology transient and impulse response with higher tuning Frequency and accurate calculation of the volume.Low delay,high quality hollow inductors and non-inductive resistor,to achieve the minimum nonlinear distortion, SPL maintain the consistency and reliability of sound.
Feature
≤ Double angle trapezoid, compact structure.
≤ 18mm Imported High Intensity Plywood.
≤ High-tech advanced composite membrane, treble slim soft.
≤ Very low power compression.
≤ Rotatable 80ìH x 50ìV horn, flexible sound field coverage.
≤ Standard M8 multi-angle hanging point, flexible and easy to install Floor Stand,Ground,Wall Mount,Ceiling.
≤ Suitable for all kind of rock bar,entertainerment bar,night club, multi-function hall,meeting rooms,concert halls,cafes,schools and all kinnds of living performance.
|
Specifications:
|
|
RMS Power Handling
|
350W
|
|
Peak Power Handling
|
800W
|
|
Unit
|
LF: 1x12”+ HF:1x1.75”
|
|
Frequency Response(【3 dB)
|
62Hz-18kHz
|
|
Sensitivity(1W @ 1M)
|
97dB
|
|
Maximum SPL
|
120dB Peak@1M
|
|
Nominal Impedance
|
8ヘ
|
|
Nominal Dispersion
|
80ìH x 50ìV
|
|
Crossover Frequency
|
4kHz
|
|

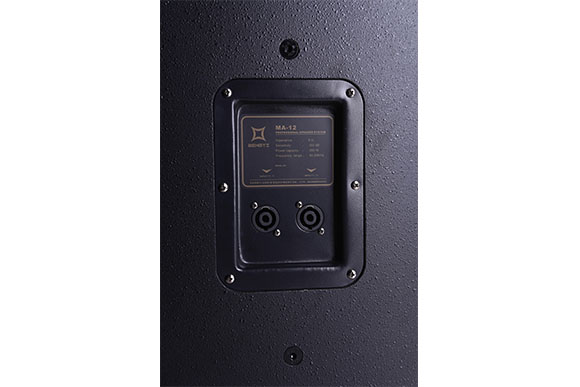

Input Connectors
|
2 x Neutrik NL4
|
|
Cabinet Type
|
18mm High Intensity Plywood
|
|
Hanging
|
M8
|
|
Unit Dimensions (W x H x D)
|
360mm (14”) x600mm (23.6”) x 380mm (15”)
|
|
Package Dimensions (single unit per box)
|
458mm (18”) x 705mm (28”) x 435mm (17”)
|
|
Unit Net Weight
|
20kg (44.1Ibs)
|
|
Gross Weight(single unit per box)
|
22.4kg (49.4Ibs)
|
