Has been the national utility model patents, patent number: 201520265075.2
1, High-definition stand-alone VOD system.
2, Android network television, film system.
3, Built-in high-capacity hard drive there are 5-7 million songs.
4, comes with WiFi can watch mass Internet TV, variety, film resources, cloud high-capacity server songs free download.
5, High-power (2 * 300W or 2 * 400W professional power amplifier.
6, Bluetooth connection, you can play your phone or Ipad music content.
7, With USB slot, mobile hard disk to play multiple formats streaming media files.
8, With fiber optic, coaxial digital audio input interface.
9, Built-in high-speed DSP processing chip, equipped with computer tuning software.
10, Four music mode (K song, dance, pop, movies) easily for switch.
11, Use a drawer-style hard disk drive with a lock.

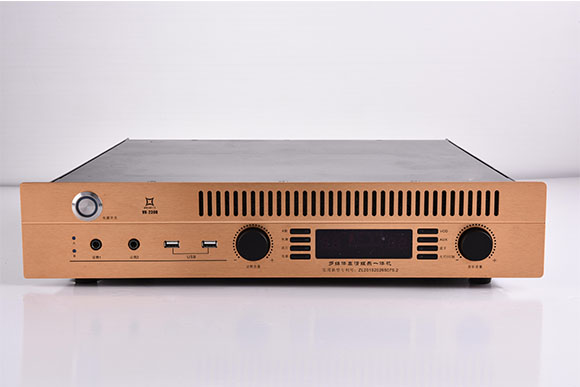

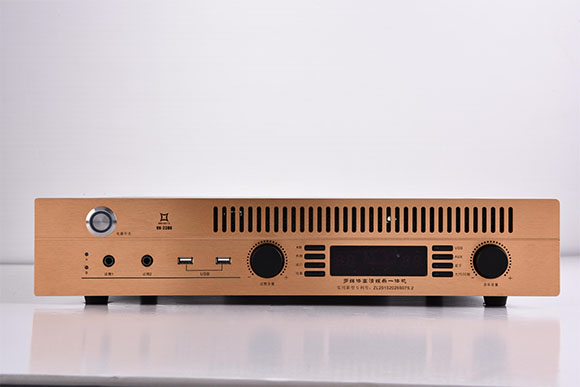

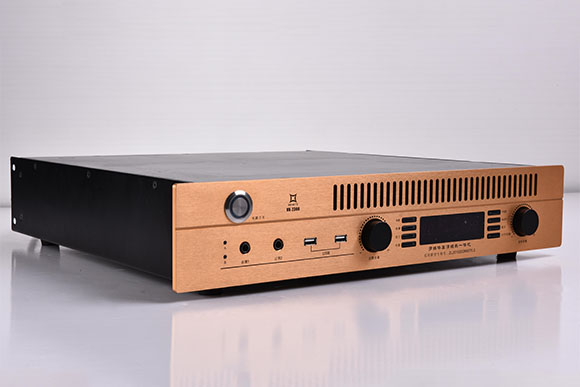

Front Panel
1. 2 channels 300W+300W@8ohm.
2. Built-in Karaoke amplifier+DSP Prcoessor+Karaoke player system.
3. With different size Monitor and Harddriver for choose.
4.2 MIC input,2 USB slot.
5. 2 Master Knob for MIC and Music.
6. 4 Music Mode: K song, dance, pop, movies easily for switch.
7.With VOD,AUX,Bluetooth,Coaxial button for choose.

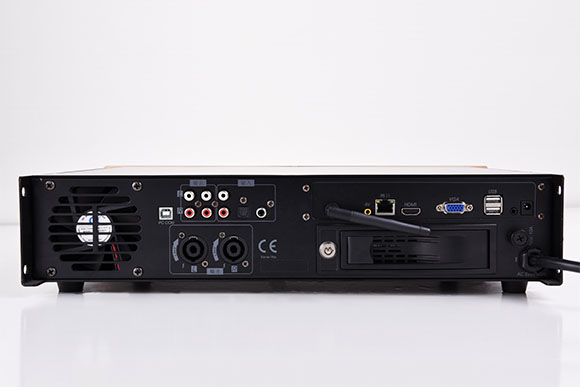

Rear Panel
1. Audio Input:2 RCA Jack
2. Audio Output:4 RCA Jack
3. Input Connector:2 x NL4
4. PC CON,Fiber Optic and Coaxial connector
5. AV,Network port,HDMI connector,VGA connector, Moniotr connector
6. 12V DC output.
7. Use a drawer-style hard disk drive with a lock.
|
Specifications:
|
|
Rated Power (Stereo 8Ω)
|
2 x 300W
|
|
Rated Power (Stereo 4Ω)
|
2 x 420W
|
|
Frequency Response
|
20Hz-20kHz±0.5%
|
|
Slew Ratio
|
20V/μs
|
|
THD (20Hz-20KHz)
|
0.1%
|
|
Damping Factor
|
≥200
|
|
S/N Ratio
|
≥96dB
|
|
MIC Input Sensitivity
|
35mv
|
|
Music Input Sensitivity
|
320mv
|
|
Input Impedance
|
20kΩ Balanced, 10kΩ Unbalanced
|
|
Circuit Type
|
CLASS AB
|
|
Power Supply
|
~110V/~220V, 50Hz/60Hz
|
|
Dimensions (W x H x D)
|
480mm(19”) x 88mm(3.5”) x 370mm(15”)
|
|
Packaging Dimensions (1 piece/pack)
|
585mm (23”) x 142mm (5.6”) x 520mm (20.4”)
|
|
Net Weight
|
15.8kg (34.8Ibs)
|
|
Gross Weight (1 piece/pack)
|
17.6kg (38.8Ibs)
|
