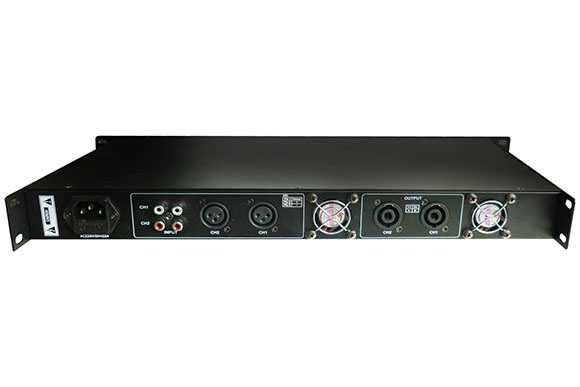

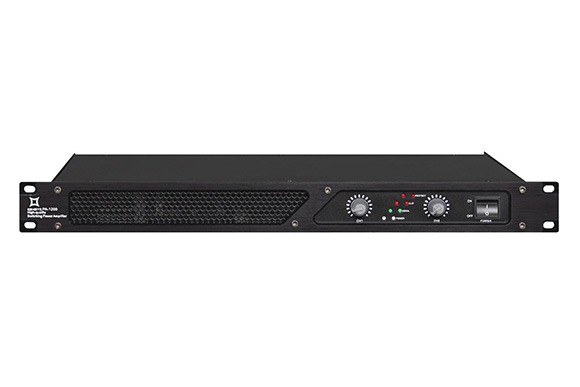

PA-1200
Power switch
Description
The PA-1200 1U power switch design which have been engineered
for reliablity can fixed in stallations or portable applications.
Feature
● Unique modern appearacne. Double side superior
glass fiber circuit board and adopt high level components.
● With high-quality high-efficiency toroidal
transformer, high-capacity electrolytic capacitor for power filter.
● Special low noise,low distortion and high signal
to nosie ratio design.
PA-1200
|
Specifications:
|
|
Rated Power (Stereo 8Ω)
|
2 x 200W
|
|
Rated Power (Stereo 4Ω)
|
2 x 300W
|
|
Frequency
Response
|
20Hz-20kHz±0.5%
|
|
Slew Ratio
|
20V/μs
|
|
THD(20Hz-20KHz)
|
<0.05%
|
|
Damping Factor
|
>250
|
|
S/N Ratio
|
≥95dB
|
|
Input Sensitivity
|
1Vrms
|
|
Input Impedance
|
20kΩ balance/10KΩ
Unbalance
|
|
Circuit Type
|
CLASS AB
|
|
Power Supply
|
~110V/~220V, 50Hz/60Hz,
|
|
Dimensions (W x H x D)
|
482mm (19”) x44mm (1.7”) x 548mm
(21.6”)
|
|
Packaging Dimensions (1 piece/pack)
|
515mm (20.3”) x 100mm (4”) x315 mm (12.4”)
|
|
Net Weight
|
3.6kg (8 Ibs)
|
|
Gross Weight (1 piece/pack)
|
4.3kg (9.5 Ibs)
|
