HT-2612

Specification
Description

The HT Series 3U 3 channel professional amplifier which have been engineered for reliablity can fixed in stallations or portable applications.Unique modern appearacne. Double side superior glass fiber circuit board and adopt high level components.Special low noise,low distortion and use high-speed power dirive to improve the reliablity,make sound clean and bright which more rapid and powerful.

Feature

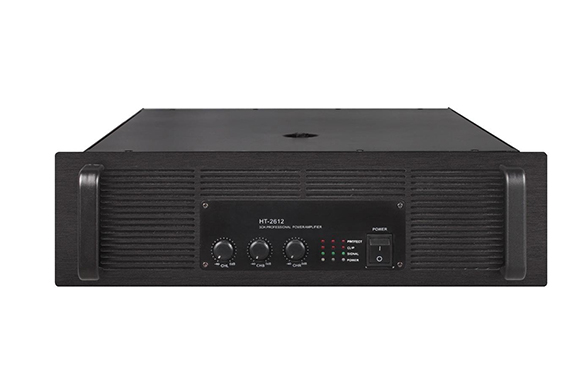

1. 3U 3 channel chassis design with aluminum front panel.

2. 2 convenietn carry handles in front panel.

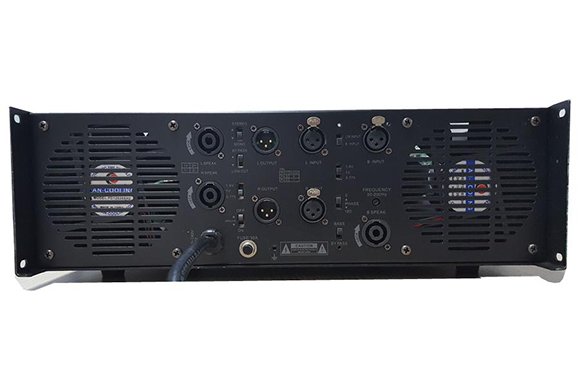

3..Rear panel selection switch for A B main channel has Stereo,Parallel and Bridge modes,including  Low-cut fliter,Sensitivity, Ground lift ,Phase and Bass switch,.

4. Indented channel volume controls.

5. Protect,Chlip, Signal and Power LED indicators for each channel.

6. Operates can adjust 8Ω and 4Ω loads.

7. Special heatsink design front to back air flow for efficient cooling ensure long-term working.

8. Variable fan, speed is automatically adjusted by temperature.

9. Over heat,over load,short circuit and DC protection.

10.With high-quality high-efficiency toroidal transformer, high-capacity electrolytic capacitor for power filter.

Specifications:

Rated Power (Stereo 8Ω)

2 x 600W+ 1000W

Rated Power (Stereo 4Ω)

2 x 800W+ 1350W

Frequency Response

20Hz-20kHz±0.5%

Slew Ratio

30V/μs

THD (20Hz-20KHz)

<0.05%

Damping Coefficient

>280

S/N Ratio

≥102dB

Input Sensitivity

1Vrms

Input Impedance

20kΩ Balanced, 10kΩ Unbalanced

Input Connector

2 x Combo XLR

Link Connector

3 x XLR male,3 pin

Output Connectors

3 x Speakon

Circuit Type

CLASS AB

Power Supply

~110V/~220V, 50Hz/60Hz

Dimensions (W x H x D)

480mm (19”) x132mm (5.2”) x 548mm (21.6”)

Packaging Dimensions (1 piece/pack)

605mm (23.8”) x 190mm (7.5) x 560mm (22”)

Net Weight (1 piece/pack)

27.9kg (61.5ILbs)

Gross Weight (1 piece/pack)

31.7kg (70Ibs)
