Line Array Speaker System

LT-210

Specification

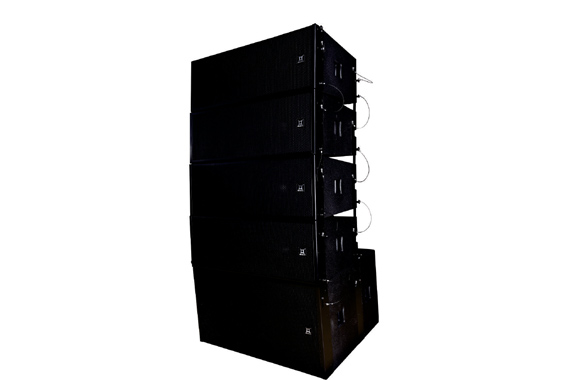

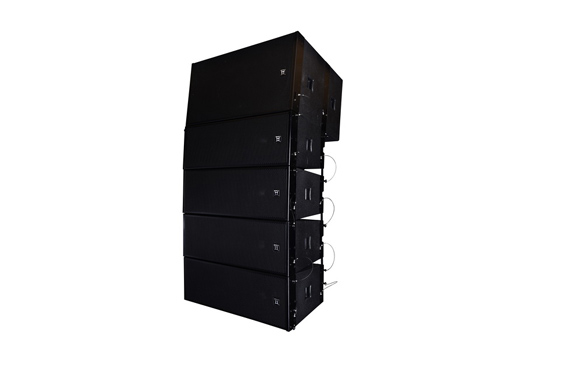

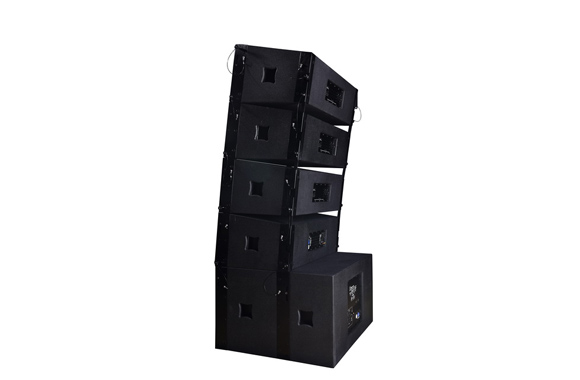

LT-210 is a vertical line array, compact, high-power two-way speaker, right two 75 mm diameter voice coil 10 inch medium-low frequency unit and two 1.7 inch neodymium magnetic tweeters. The tweeter is mounted on a dedicated low-loss directional waveguide horn, and the low-frequency phase forms a 120 degree correspondence, so that the high-frequency sound pressure centralized transmission to the farthest distance. The cabinet uses high quality 13-layer piano board, wear-resistant waterproof paint outside the cabinet, can be used indoors and outdoors all weather. The sound of the LT-210 linear sound box is clear, the sound quality is soft and the penetration is strong. Each box has a 0-10 degree angle between adjustable, with a convenient suspension installation system, and can stack 4-6 boxes on the bass directly used. The linear speaker is equipped with a complete power amplifier and audio processing system, so that you can hang up the speaker in a short time, turn on the power supply and signal source of the power amplifier system, and use it immediately.

Line Array system

LT-210 Specification

RMS Power Handling

MF-600W RMS;HF-160W RMS

Peak Power Handling

MF-1200W RMS;HF-320W RMS

LF Unit

2 x 10”(Φ50mm)

HF Unit

2x1.7”

Frequency Response (±3 dB)

70Hz-20kHz

Sensitivity(1W @ 1M)

102dB

Maximum SPL

130dB

Nominal Impedance

Connectors

2 x Neurtrik Speakon(4 Pins)

Horn Dispersion

V120 x H10 degree

Finish

Corundum pain

Rec.Amplifier Power

HF 600W & LF 1900W@ 8ohms

Dimensions (W x H x D)

864 x 299 x 400mm

Package Dimensions (1pc)

495 x969 x395mm

Net Weigh

37kg(181.6Ibs)

Gross Weight

42kg(92.6Ibs)
