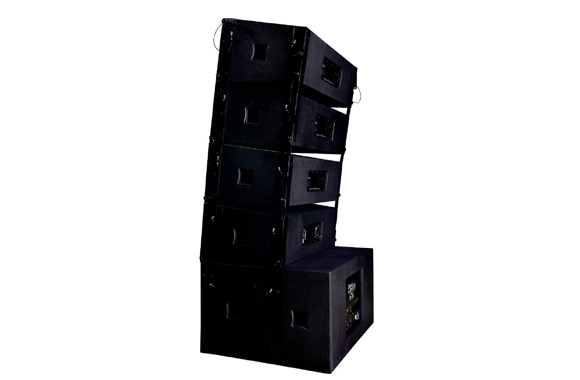

Line Array Speaker System



LT-215B is a double 15-inch high-power ultra-low frequency speaker, mainly with the LT-210 linear series of speakers used. LT-215B compact, easy to install, can be suspended or stacked. Equipped with dual 15 inch high power long stroke low frequency unit, powerful power, low frequency plump and round. With high quality digital audio processor used together, the timbre is more perfect.


1. RMS Power Handling: 1000W RMS

2. Peak Power Handling: 2000W RMS

3. Component: LF-2 x 15

4. Frequency Response: (±3 dB): 33Hz-250Hz

5. Sensitivity(1W @ 1M): 102dB

6. Maximum SPL:132Peak @ 1M

7. Nominal Impedance:4 ohm

8. Connectors: 2 x Neurtrik Speakon(4 Pins)

9. Horn Dispersion: V120 x H10 degree

10. Surface Finished: Corundum pain

11. Rec.Amplifier Power: 1300-1500W@ 8ohms

Unit Dimensions (W x H x D): 864 x 520 x 770mm

Package Dimensions (1pc): 959 x 615 x 865mm

Net Weight: 103kg(227 Ibs)

Gross Weight (1pc per box): 110kg(242Ibs)
