Line Array Speaker System

LT-110

Specification

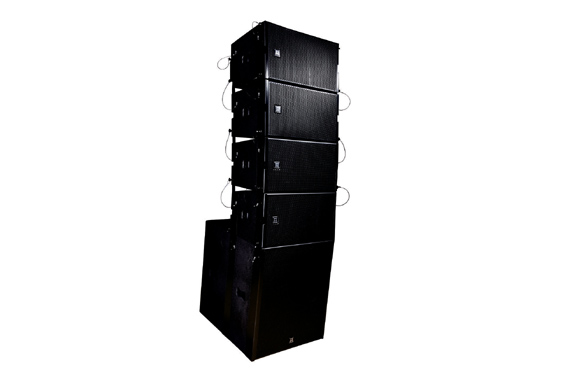

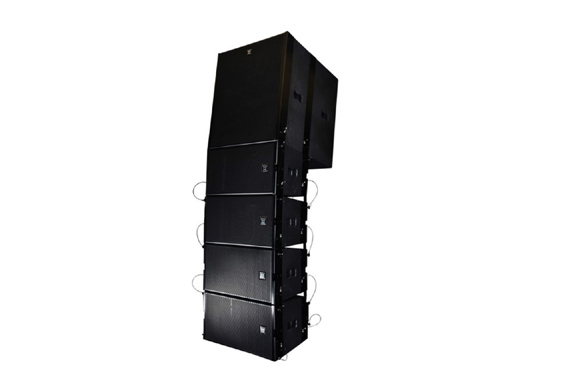

LT-110 is a vertical linear array, compact high-power two-way speaker, consisting of two 75 mm diameter voice coil 10 inch medium-low frequency unit and two 1.7 inch neodymium magnetic tweeters. The tweeter is mounted on a dedicated low-loss directional waveguide horn, and the low-frequency phase forms a 120 degree correspondence, so that the high-frequency sound pressure centralized transmission to the farthest distance. The cabinet uses high quality 13-layer piano board, wear-resistant waterproof paint outside the cabinet, can be used indoors and outdoors all weather. LT-110 linear speakers have clear voice, soft sound and strong penetrating power. Each box has a 0-10 degree angle between adjustable, with a convenient suspension installation system, and can stack 4-6 boxes on the bass directly used. The linear speaker is equipped with a complete power amplifier and audio processing system, so that you can hang up the speaker in a short time, turn on the power supply and signal source of the power amplifier system, and use it immediately.

Line Array system

LT-110 Specification

RMS Power Handling

MF-300W RMS;HF-80W RMS

Peak Power Handling

MF-600W RMS;HF-160W RMS

LF Unit

1x 10”(Φ50mm)

HF Unit

2x1.7” Neo

Frequency Response (±3 dB)

70Hz-20kHz

Sensitivity(1W @ 1M)

102dB

Maximum SPL

130dB

Nominal Impedance

Connectors

2 x Neurtrik Speakon(4 Pins)

Horn Dispersion

V120 x H10 degree

Finish

Corundum pain

Rec.Amplifier Power

HF 600W & LF 900W@ 8ohms

Dimensions (W x H x D)

560 x 299 x 400mm

Package Dimensions (1pc)

495 x 665 x395mm

Net Weigh

30kg(66Ibs)

Gross Weight

35kg(77Ibs)
