Description
The TW Series 2U and 2
channel professional amplifiers which have been engineered for reliability can
fixed installations or portable applications.
Unique modern appearance.Double side superior glass fiber circuit
board and adopt high level components. Unique low-noise design, noise is very
low when working.
Feature

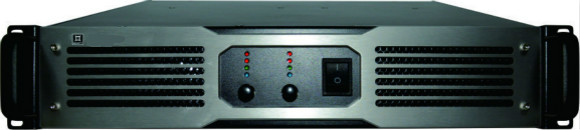

1. 2U chassis design with
aluminum front panel.
2. 2 convenient carry handles in
front panel.

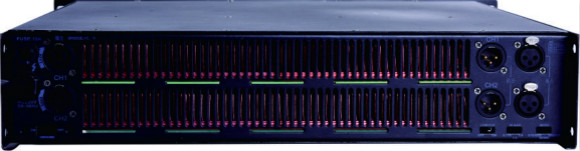

3. Rear panel selection switch
for Stereo, Parallel and Bridged modes, including Low-cut filter and Gain
switches.
4. Indented channel volume
controls.
5. Protect,Chlip, Signal and
Power LED indicators for each channel.
6. Operates can adjust 8Ω and 4Ω
loads.
7. Special heatsink design front
to back air flow for efficient cooling.
8. Variable fan, speed is
automatically adjusted by temperature.
9. Over heat,over load,short
circuit and DC protection.
10. With high-quality
high-efficiency toroidal transformer, high-capacity electrolytic capacitor for
power filter.
|
Specifications:
|
|
Rated Power (Stereo 8Ω)
|
2 x 350W
|
|
Rated Power (Stereo 4Ω)
|
2 x 460W
|
|
Rated Power (Bridge 4Ω)
|
800W
|
|
Frequency Response
|
20Hz-20kHz±0.5%
|
|
Slew Ratio
|
30V/μs
|
|
THD (20Hz-20KHz)
|
<0.05%
|
|
Damping Coefficient
|
>280
|
|
S/N Ratio
|
≥102dB
|
|
Input Sensitivity
|
1Vrms
|
|
Input Impedance
|
20kΩ Balanced, 10kΩ Unbalanced
|
|
Input Connector
|
2 x Combo XLR
|
|
Link Connector
|
2 x XLR male,3 pin
|
|
Output Connectors
|
2 xSpeakon
|
|
Circuit Type
|
CLASS AB
|
|
Power Supply
|
~110V/~220V,
50Hz/60Hz, 1500VA
|
|
Dimensions (W x H x D)
|
480mm (19”) x88mm (3.5”) x 370mm (14.6”)
|
|
Packaging Dimensions (1 piece/pack)
|
585mm (23”) x 142mm (5.6”) x 520mm (20.4”)
|
|
Net Weight (1 piece/pack)
|
15.7kg (34.6Ibs)
|
|
Gross Weight (1 piece/pack)
|
18.6kg (41Ibs)
|
