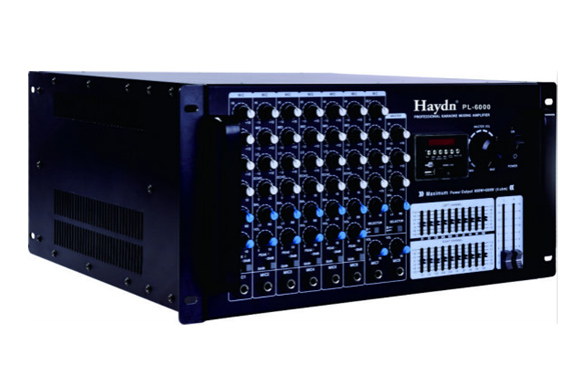

PL-6000

Specification

1.RMS Power @ 8 ohm: 2*350W

  RMS Power @ 4 ohm: 2*518W

2.Input Sensitivity

MIC: 15mV

LINE(±﹪10):250mV

3.Input Impedance: 10kΩ Unbalanced

4.Frequency Response(≤±0.5dB): 20Hz-20kHz

5.THD+N(1KHz 20W/8Ω):  ≤0.5%

6.SNR: ≥85dB

7.Noise Voltage(LINE): ≤3mV

8.MIC Tone adjustment

Treble  80Hz ±15dB

Mid    3.5KHz±12dB

Bass   12KHz ±15dB

Dimensions(W*D*H): 430*315*132mm

Packaging Dimensions:500*420*215mm

Net Weight:12kg

Gross Weight:13.75kg

Features

1 Super large electric current design,low distortion output.

2. Up to 16 MIC signal mixed Input.

3.Two groups of sound source changing input.

4. A group of professional balanced servo circuit output.

5. Two groups of RCA output.

6.HIFI digital karaoke.

7.Heavyweight aluminum material radiator dispels the heat,the electric servo air-cooled,constant temperature-controlled heat dissipation system.

8.16 Toshiba transistor to promote power.

9.Super high speed power circuit design.

10. USB,SD function.

11. Dual 10-band EQ adjustment
