Description
The A Series 2U,3U with 2 channel,3 channel and 4 channel professional amplifier which have been engineered for reliablity can fixed in stallations or portable applications.Unique modern appearacne. Double side superior glass fiber circuit board and adopt high level components.Special low noise,low distortion and high signal to nosie ratio design.
Feature

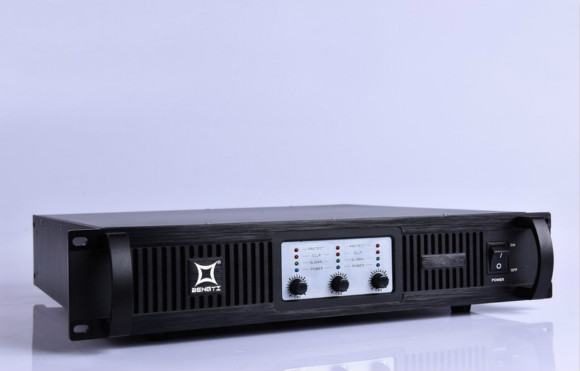

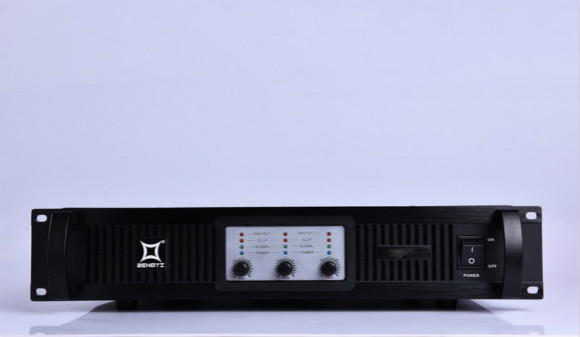

1. 3U 3 channel chassis design with aluminum front panel.
2. 2 convenient carry handles in front panel.

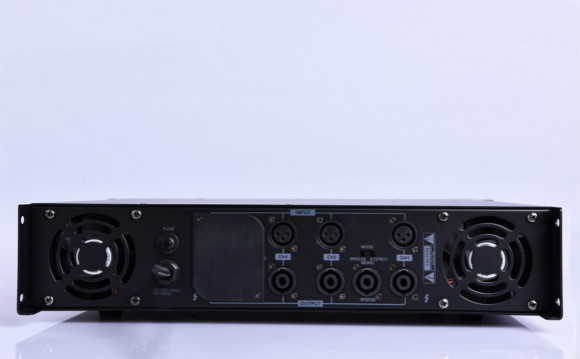

3. Rear panel selection switch for A B main channel has Stereo,Parallel and Bridge modes.
4. Indented channel volume controls.
5. Protect,Chlip, Signal and Power LED indicators for each channel.
6. Operates can adjust 8Ω and 4Ω loads.
7. Special heatsink design front to back air flow for efficient cooling.
8. Variable fan, speed is automatically adjusted by temperature.
9. Over heat,over load,short circuit and DC protection.
10. With high-quality high-efficiency toroidal transformer, high-capacity electrolytic capacitor for power filter.
|
Specifications:
|
|
Rated Power (Stereo 8Ω)
|
3 x 600W
|
|
Rated Power (Stereo 4Ω)
|
3 x 820W
|
|
Frequency Response
|
20Hz-20kHz±0.5%
|
|
Slew Ratio
|
30V/μs
|
|
THD (20Hz-20KHz)
|
<0.05%
|
|
Damping Coefficient
|
>280
|
|
S/N Ratio
|
≥102dB
|
|
Input Sensitivity
|
1Vrms
|
|
Input Impedance
|
20kΩ Balanced, 10kΩ Unbalanced
|
|
Input Connector
|
3 x XLR
|
|
Output Connectors
|
4 x Speakon
|
|
Circuit Type
|
CLASS H
|
|
Power Supply
|
~110V/~220V, 50Hz/60Hz
|
|
Dimensions (1 piece/pack)
|
480mm (19”) x132mm (5”) x 480mm (19”)
|
|
Packaging Dimensions (1 piece/pack)
|
585mm (23”) x 180mm (7”) x 520mm (20.4”)
|
|
Net Weight (1 piece/pack)
|
30.1kg (66.4Ibs)
|
|
Gross Weight (1 piece/pack)
|
32.4kg (71.4Ibs)
|
