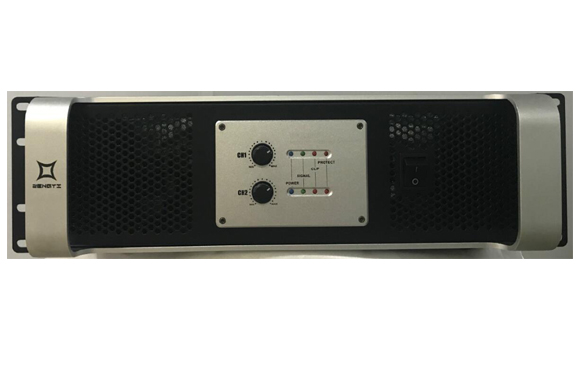

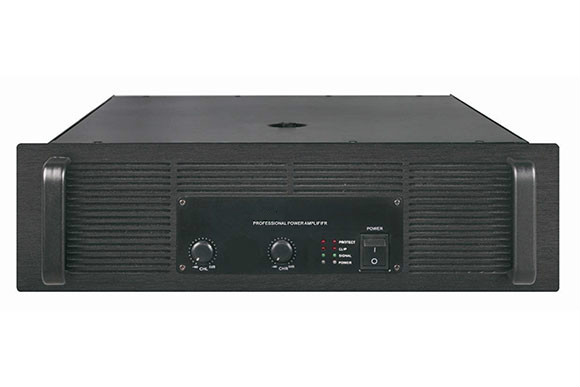

● 3U chassis design with aluminum front
panel.
● 2 convenient carry handles in front
panel.

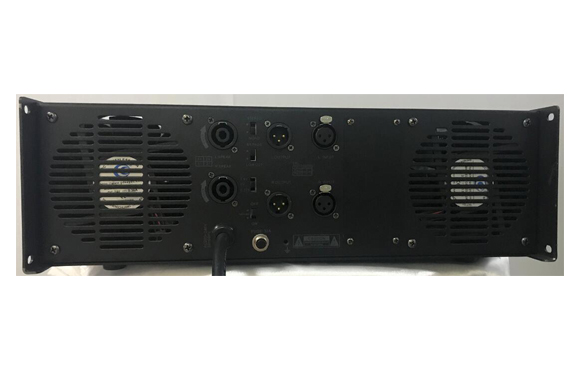

● Rear panel selection switch for Stereo,
Parallel modes,including Low-cut filter,Insesitivity and Ground connection
switches.
● Indented channel volume controls.
● Protect,Chlip, Signal and Power LED
indicators for each channel.
● Operates can adjust 8Ω and 4Ω loads.
● Special heatsink design front to back
air flow for efficient cooling.
● Variable fan, speed is automatically
adjusted by temperature.
● Over heat,over load,short circuit and
DC protection.
● With high-quality high-efficiency
toroidal transformer, high-capacity electrolytic capacitor for power filter.
|
Specifications:
|
|
Rated Power (Stereo 8Ω)
|
2 x 1800W
|
|
Rated Power (Stereo 4Ω)
|
2 x 2650W
|
|
Frequency Response
|
20Hz-20kHz±0.5%
|
|
Slew Ratio
|
30V/μs
|
|
THD (20Hz-20KHz)
|
<0.05%
|
|
Damping Coefficient
|
>280
|
|
S/N Ratio
|
≥102dB
|
|
Input Sensitivity
|
1Vrms
|
|
Input Impedance
|
20kΩ Balanced, 10kΩ Unbalanced
|
|
Input Connector
|
2 x XLR
|
|
Link Connectors
|
2 x XLR male,3 pin
|
|
Output Connectors
|
2 x Speakon
|
|
Circuit Type
|
CLASS BT
|
|
Power Supply
|
~110V/~220V, 50Hz/60Hz
|
|
Dimensions (W x H x D)
|
480mm (19”) x132mm (5.2”) x 548mm (21.6”)
|
|
Packaging Dimensions (1 piece/pack)
|
605mm (23.8”) x 190mm (7.5) x 560mm (22”)
|
|
Net Weight (1 piece/pack)
|
34.5kg (71.7Ibs)
|
|
Gross Weight (1 piece/pack)
|
36.5kg (76.9Ibs)
|
