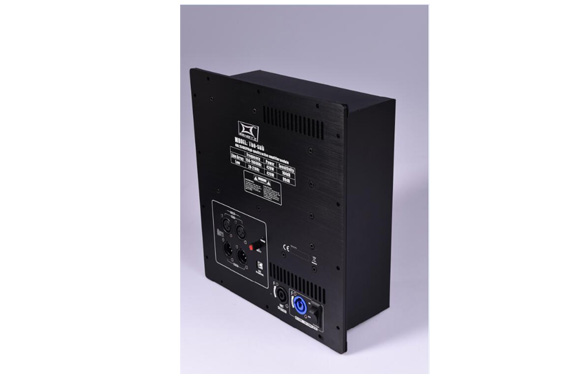

The-SUB

Specification

1. Profession Audio Class AB Circuit

2. Can make shield box sealed,easy to install and protect

3. Widely application for Line Array Speaker System,Full range Speaker and Combo Speaker

Parameter

1.8Ω Stereo Power(1KHz): 2x350W

2.4Ω Stereo Power: 2x510W

3.Signal Noise Ratio(dB): ≥99dB

4.THD+N(rated power,1/8 /KHz)%: <0.1%

5.Damping Coefficient: >280

6. Slew Ratio: 30V/μs

7.Input Sensitivity:0.775Vrms

8.Input Impedance:20kΩ balance

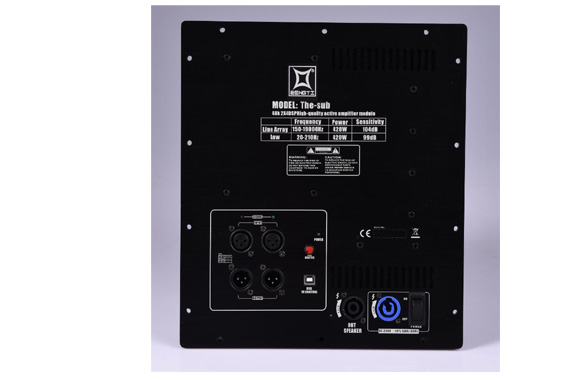

9.Input Connectors:2 x Combo XLR type,3pin

10.Link Connectors:2 x Male XLR type,3pin

11.Output Connectors:1 x NL4 Speakon 4pin.

12.USB PC Control connector.

13.Output Circuitry: CLASS D

Built-in 2.IN 3 OUT

DSP processor

Switching power supply

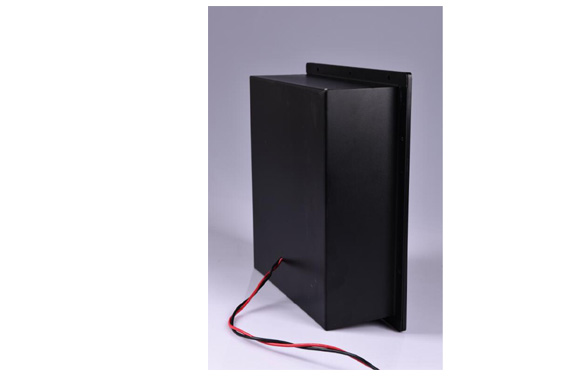

With shield box sealed,easy to install and protect

14.Power supply:AC110V-240V (50Hz-60Hz)

Dimensions(WxHxD):280x310x100mm

Net Weight:9kg
