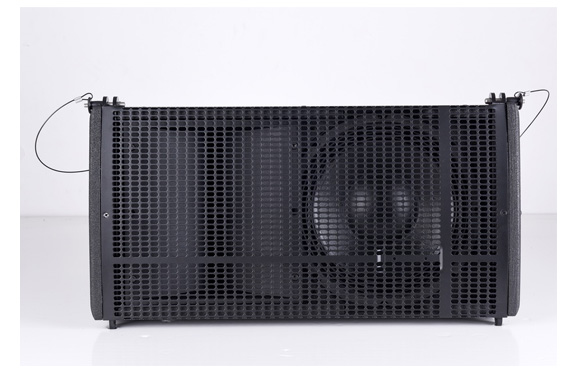

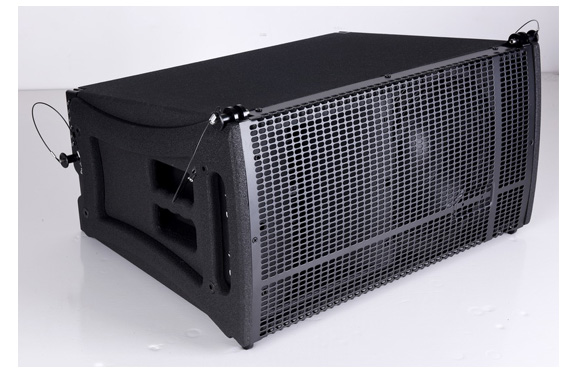

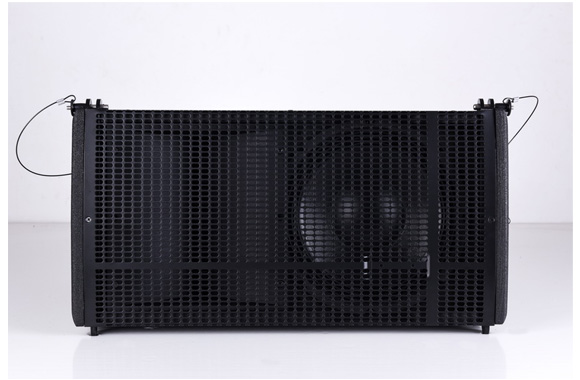

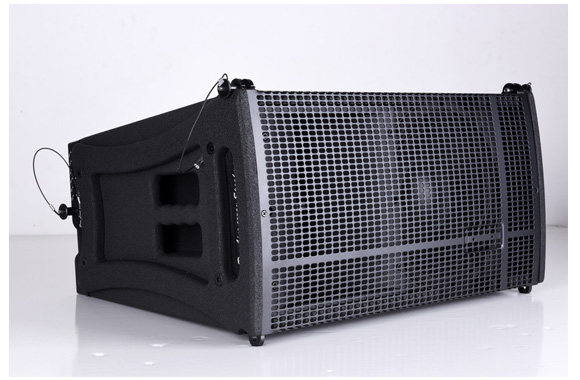

Pro-dB110A

2-Way Full Range Line Array Speaker System

Technical Parameter

1. RMS Power Handling: 420W

2. Peak Power Handling: 1600W

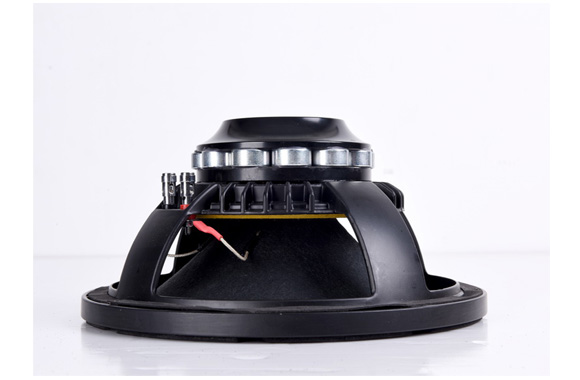

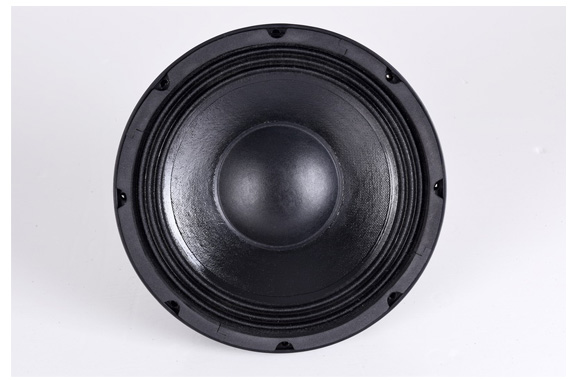

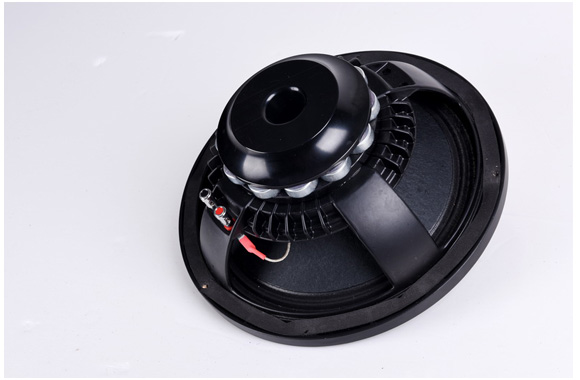

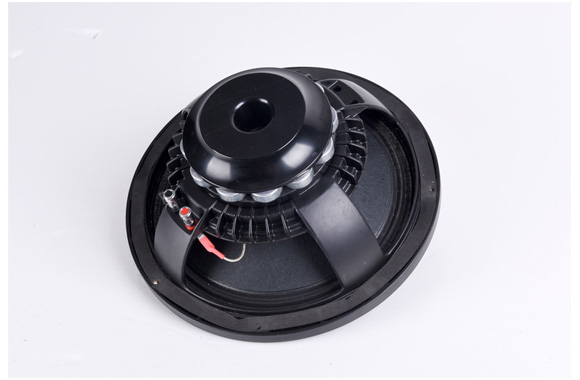

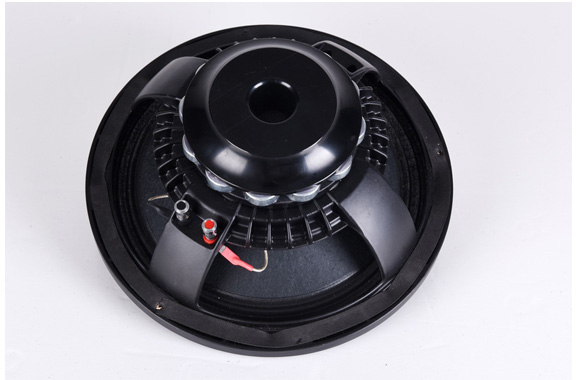

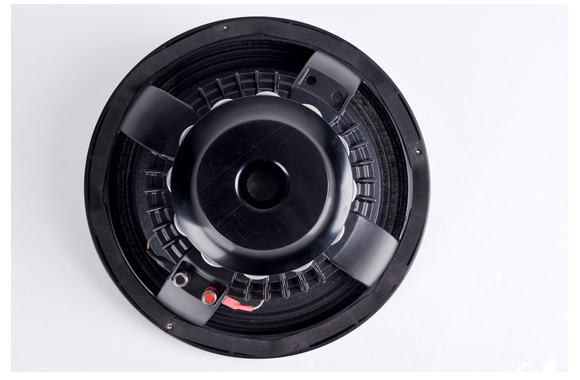

3. Drivers: LF 1x10”/ 12pcs magnet  3” (65mm) Voice coil

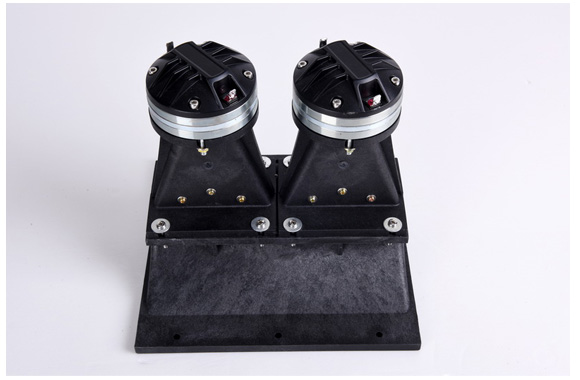

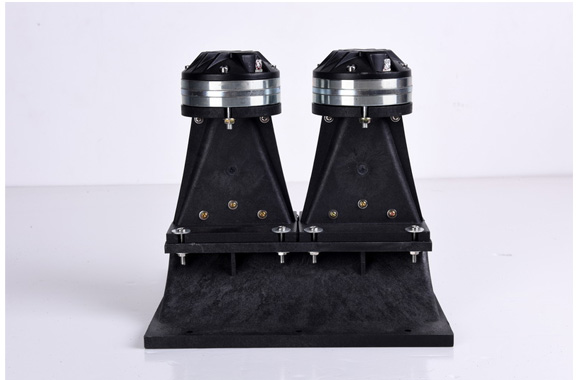

HF 2x1.75” / 44mm voice coil

4. Frequency Response (±3 dB): 65Hz-20KHz

5. Sensitivity(1W @ 1M): 105dB

6. Maximum SPL:131dB Peak @ 1M

7. Nominal Impedance:8 ohm

8 Nomial Dispersion: H100o x V10o

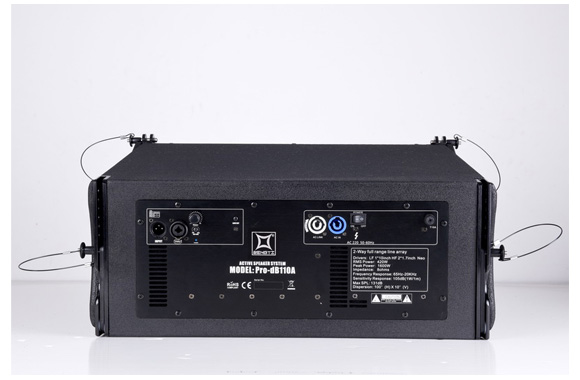

9.Input Connectors:1 x Combo XLR ,3pin

10.Output Connectors:1 x 6.3 multipurpose interpolation

11. Sub ultra low frequency 40Hz-150H with independent Volume adjustment

12.Low Cut function

13.Output Circuitry: CLASS AB

14.Cabinet Material:18mm plywood

15.Surface Finished: spray painting+ metal grille

Dimensions(WxHxD):550x400x280mm

Packing Dimensions(WxHxD):620x365x470 mm

Net Weight:23.5kg

Gross Weight: 26.2kg
