CL112SUB Active type

1. RMS Power Handling: 450W

2. Peak Power Handling: 1350W

3 Components (LF): 1x12” 190 magnet  3”(75mm) Voice coil

4. Normal Impedance:8 ohms

5. Frequency Response (±3 dB): 35Hz-300Hz

6 Sensitivity(1W @ 1M): 109dB

7. Maximum SPL:131 Peak @ 1M

8.Input Connectors:2 x Combo NL4,3 inn

   Link Connectors:2x NL4,3 pin.

9. Output Connectors:3 x NL4 Speakon

10. Cabinet Material:18mm plywood

11.Surface Finished: spray painting+ metal grille

12.Amplifier Power:SUB Ch:650W@8 ohms

                        L/R Ch:2x350W@8 oohms

13.Circuitry type:CLASS AB

Unit Dimensions (W x H x D):515x485x390mm

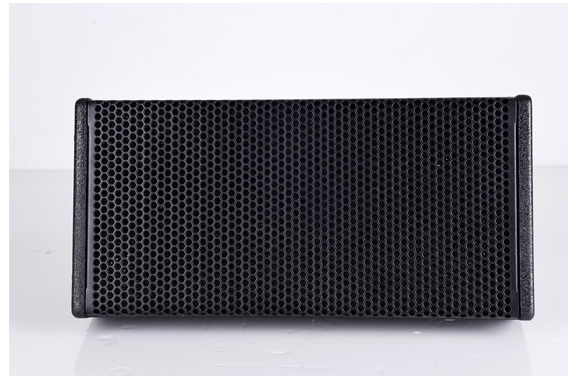

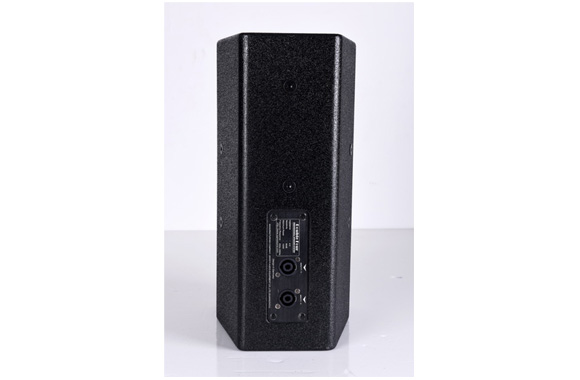

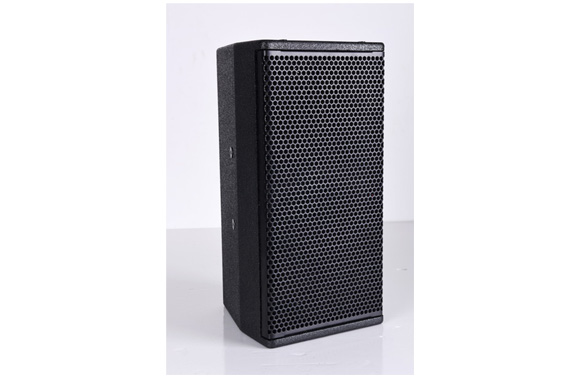

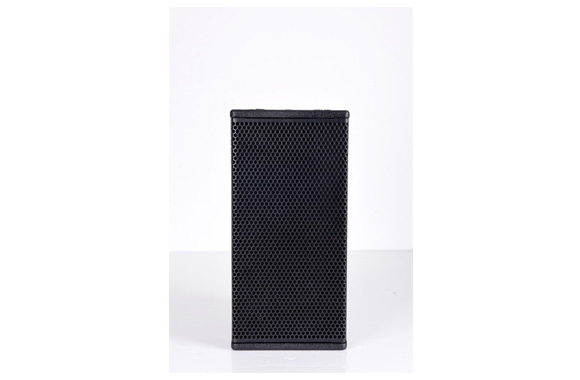

LT-601 2-Way full rang line array

1.RMS Power Handling: 190W

2.Peak Power Handling:520W

3. Components:LF 1x6.5” / 50mm Neo magnet  1.5”(36mm) voice coil

                              HF 1x1.4inch

4. Normal Impedance:8 ohms

5.Frequency Response (±3 dB): 65Hz-20KHz

6.Sensitivity(1W @ 1M): 96dB

7.Maximum SPL: 113dB

8.Output Connectors:2 x NL4 Speakon

9. Cabinet Material:18mm plywood

10.Surface Finished: spray painting+ metal grille

11.Normal Dispersion: H100o x V10o

Unit Dimensions (W x H x D): 190x390x210mm
