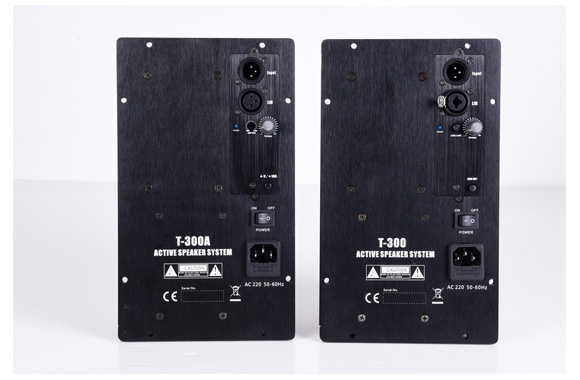

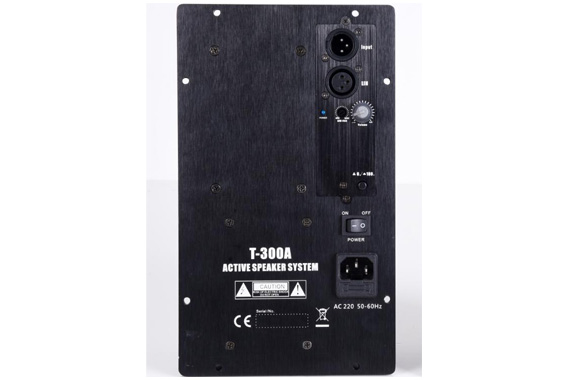

T-300A

Specification

1. Profession Audio Class AB Circuit

2. With shield box sealed,easy to install and protect

3. Widely application for Line Array Speaker System,Full range Speaker and Combo Speaker

Technical Parameter

1.8Ω Stereo Power(1KHz): 300W

2.4Ω Stereo Power: 450W

3.Frequency Response: 20Hz-200Hz ±0.5%

4.Signal Noise Ratio(dB): ≥102dB

5THD+N(rated power,1/8 /KHz)%: <0.05%

6.Input Sensitivity:1Vrms

7.Input Impedance:20kΩ balance/10 kΩ unbalance

8.Input Connectors:1 x Combo XLR ,3pin

9.Output Connectors:1 x 6.3 multipurpose interpolation

10. Sub ultra low frequency adjustment 40Hz-150H, with independent Volume adjustment

11. 0/180° Phase adjustment

12.Output Circuitry: CLASS AB

13.Power supply:AC110V-240V (50Hz-60Hz)

Dimensions(WxHxD):133x245x85mm

Packing Dimensions(WxHxD): mm

Net Weight:4.95kg

Gross Weight: kg
