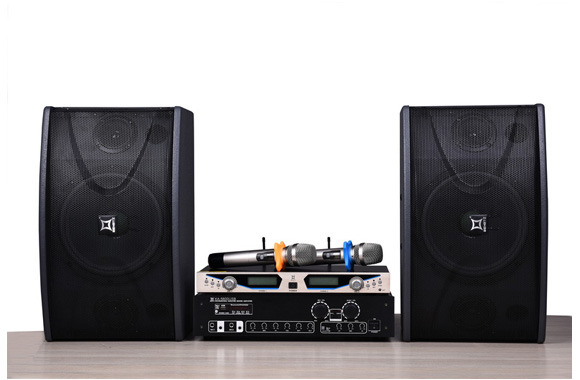

KA-5600USB Detail

Technical information

1.RMS Power @ 8 ohm: 2*180W

  RMS Power @ 4 ohm: 2*265W

2.Input Sensitivity

MIC: 15mV

LINE(±﹪10):250mV

3.Input Impedance: 10kΩ Unbalanced

4.Frequency Response(≤±0.5dB): 20Hz-20kHz

5.THD+N(1KHz 20W/8Ω):  ≤0.5%

6.SNR:    ≥92dB

7.Noise Voltage(LINE): ≤3mV

8.MIC Tone adjustment

Treble  80Hz ±15dB

Mid    3.5KHz±12dB

Bass   12KHz ±15dB

Dimensions(W*H*D): 430*100*315mm  Aluminum

Features

1.8 Units of original Japanese Toshiba high-power transistors to enable high-power amplifying and great sound effect.

2.Aluminum front panel.

3.Electronic heat-preserving fan for heat scattering.

4.Built-in 16Bits key modulating system

5.Overload,over –currenct,DC protection.

6.Professional digital karaoke IC,stereo mike effect and karaoke Dolby noise eliminatin.

7.Master MIC and MUSCI volume for adjustment.

8.Sound field prompting switch., DISCO and HALL for Music switch..

9.With MP3/SD card design, independent source provide to keep MP3 stability .

10.With FM,Bluetooth .

11. 2 kind of speaker connectors:4xbinding post+2 x NL4 Speakon

Dimensions(WxHxD):430x100x315mm

Packing Dimensions(WxHxD): 515x150x380mm

Net Weight:11.5kg

Gross Weight:13kg
